How big is Pluto, anyway?

These days, a question like that is easy to answer: type it in to Google, click on the Wikipeadia entry, and read the answer: 2306 +/- 20 km. The  +/- (to be read “plus or minus”) is important here: every measurement has limitations and an often critical  part of science is correctly quantifying those limit. The correct interpretation of 2306 +/- 20 km is that 2306 km is the most likely value, but, within a certain range of probability, the value could be as low as 2286 or as high as 2326 km. The value could still be higher or lower, but the probability is small.

So when the occultation of a start by Eris a few weeks ago lasted for such a short period of time that it was clear that Eris could be no larger 2360 km, Pluto was declared, throughout the land, the once-again largest dwarf planet and king of the Kuiper belt. Because, um, 2306 km is greater than 2360 km? [see updated size on Eris, below]


Even I was caught off guard by this one. I heard the report about Eris now being smaller than Pluto early on a Sunday morning after a week of travel, and I was too groggily jet-lagged to have looked closely at the numbers (indeed, since the results of the occultation have not yet been fully analyzed or published it is hard to even find the numbers). I just thought “wow; Eris smaller than Pluto? This is not what I would have guessed,” and I moved on to try to understand what this new bit of information about Eris was telling us.

With a little more time to examine, though, I have to say: there is something fishy in the size of Pluto.

If you scour the internet, you can find authoritative sources claiming that Pluto is anywhere from about 2200 km to 2400 km in size. Some official looking list of solar system body sizes at JPL claim 2280 km. The article from Sky & Telescope first suggesting Pluto is larger than Eris says that Pluto has an “accepted” diameter of 2344+/-20 km. Wikipeadia, again, 2306 +/- 20 km. Why such confusion? Because, perhaps shockingly, scientists themselves have not settled on a consistent answer. In scientific papers describing a 1988 occultation of a star by Pluto, Bob Millis and colleagues suggest a size as high as 2390 +/- 10 km. In earlier papers, Eliot Young and Marc Buie each used measurements of the time it took Charon to cross the face of Pluto to derive much smaller Pluto sizes of 2284 +/- 18 km and 2300 +/- 14 km, respectively. The measurements span a range of about 100 km, but the uncertainties in the measurements are always alleged to be smaller than 20 km. Clearly some of the measurements or the uncertainties or perhaps both are in error.

These discrepancies have been known for years, and astronomers have suggested that Pluto’s atmosphere is to blame. Pluto’s atmosphere, like the earth’s, is primarily made of nitrogen. On Pluto, however, the next most abundant component is methane. Methane, like other hydrocarbons, decomposes in sunlight and eventually turns into increasingly more complex molecules. Hydrocarbons that are released from the surface of Pluto and go into the atmosphere suffer the same ultimate fate as hydrocarbons that are emitted from a car tailpipe and go into the skies of Los Angeles: they become haze. When measuring the size of Pluto with a stellar occultation, an opaque haze layer 10 or 20 or 30 km thick will cause Pluto to look 10 or 20 or 30 km bigger. (An alternative suggestion is that a warm layer at the very bottom of Pluto’s atmosphere causes a shimmy mirage which makes Pluto look bigger).

When Bob Millis suggested a size of 2390+/-10 km, he specifically said if there is no haze in the atmosphere. When, alternatively, analyzing the data assuming that a haze is present, he could only state that the diameter of Pluto+haze is around 2360 km. Pluto must be smaller than this, but by an unknown amount.

The stellar occulation size now is at least consistent, in principle, with the smaller measurements from timing of Charon, but these measurement, too, have potential problems. In a later analysis (after seeing the larger sizes coming from stellar occultations) Eliot Young reanalyzed his own data and realized that some of the simplifying assumptions made in their earlier analysis made the derived size of Pluto both smaller and seemingly more precise than it might actually be. When he dropped those perhaps simplistic assumptions, he came up with a slightly larger size (and larger uncertainty) of 2328 +/- 46 km.

So what is the actual size of Pluto?

As a scientist you don’t get an answer key. You have to look at all of the measurements, read the scientific papers, and try to understand the discrepancies. Sometimes you simply might have more faith in one type of measurement than another. Sometimes you trust certain scientists more than others. Sometimes you simply don’t know and you decide that the true answer could be anywhere with the range of the measurements and you carry in your mind a larger uncertainty that any of those you see written in a paper.

In the case of Pluto, my first instinct would be to go with a stellar occultation. These are the gold standard in precise size measurement, at least for a body with no atmosphere. But the atmosphere of Pluto and the potential contamination with haze makes me wary of using the stellar occultations as anything other than an upper limit. The two separate Charon timing experiments come up with precise and consistent answers – which is always encouraging to see -- but these are complicated analyses with multiple assumptions, so I am again a bit wary. When I look at all of the evidence I am most swayed by the reanalysis from Eliot Young, who made the minimal number of assumptions. The uncertainty that he derives is larger than the other methods, but that uncertainty seems much closer to the mental uncertainty that I get from reading the discrepant results here.

Interestingly, the timing experiments also give a size of Charon, too. The reanalysis from Eliot Young suggests a diameter of 1256 +/- 42 km. Recently, though, a much better measurement from an occultation has shown that the true size of Charon to be 1209 +/- 3 km (and Charon has no pesky atmosphere to cause problems), so perhaps the mutual events are systematically overestimating the sizes of Charon and of Pluto, also, and the true size is indeed on the smaller end like the initial analyses suggested. What to do?

When faced with discrepant data and no obvious reason to prefer one over another, the most important thing for a scientist to do is to make it clear just how uncertain the real answer is. So, from now on, if you ask me, I will tell you Pluto is probably 2330 +/- 50 km (I round the numbers, since at this level of uncertainty a few kilometers here or there don’t matter). The upper end is set by the stellar occultation. The lower end corresponds approximately to the initial timing experiment analyses, and the middle is the Young reanalysis.

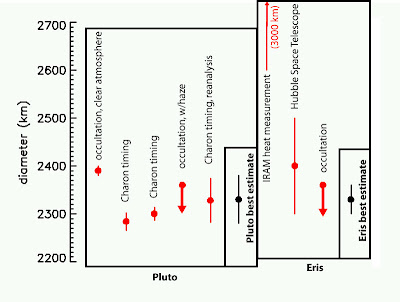

Estimates of the sizes of Pluto and of Eris. Different methods give different results for each body, but combining the different results with a best judgment of the reliability of each can be used to come up with a best estimate for each body.

OK, now back to Eris. The very first estimate of the size of Eris came from the detection of the very feeble emission from the heat of Eris by the huge IRAM telescope in Spain. The subsequent paper by Frank Betoldi calculated that the amount of heat suggested a size of 3000 +/- 400 km. The title of their paper trumpeted the news: “2003 UB131 is bigger than Pluto.”

At about the same time, I had taken pictures of Eris (then still 2003 UB313) with the Hubble Space Telescope, and I could immediately tell that Eris was definitely not on the large end of their suggested range. Careful analysis of the barely-detected disk of Eris finally suggested a size of only 2400 +/- 100 km. Like the case for the multiple measurements of the size of Pluto, the two measurements for the size of Eris did not agree.  But both the Hubble and IRAM measurements were difficult with the potential for error. I was willing to believe that each of us had underestimated our uncertainties a bit and that the true size of Eris was something like 2550 km, a little bigger than our Hubble measurement suggested, and a little smaller than IRAM. As I detailed earlier, assuming this diameter meant that Pluto and Eris had the same density, which seemed perfectly reasonable.

The new occultation measurement suggests that Eris is no larger than 2360 km, which has been called “substantially smaller than expected.” But, of course, that size is well within the range of expectation from my Hubble Space Telescope measurements, it is just that it is far outside the range of the IRAM measurement. We are left with no choice but the discard the IRAM measurements at this point, I believe. Until the full analysis of the occultation results is complete and published the best we can do is to try to combine the HST and occultation results. Because of the Hubble results, it would not surprise me at all if the measurement eventually suggest Eris were as small as 2300 km, but I will be surprised if it is any smaller than that. From this unrigorous analysis I come up with a current best guess of something like 2330 +/- 30 km.

So here are my best estimates of sizes. Pluto: 2330 +/- 50 km; Eris 2330 +/- 30 km.

[Update, October 2011: The analysis from Sicardy is now complete and the measured diameter of Eris is 2326 +/- 12 km]

Shockingly, I didn’t contrive to make those numbers turn out to be exactly the same (in fact I examined the Pluto data last night, wrote the value down, and completely forgot it before writing the section on Eris. I had to scroll back up the page to write the size of Pluto, and, I admit, I was a bit stunned). Even if Pluto or Eris had been 10 or 20 km bigger or smaller, it is clear that the only safe statement to make at this point is this: within the uncertainties, we cannot distinguish which of the dwarf planets is the largest.

Fear not, a real winner will be declared eventually. The faint star that Eris occultated was only viewed by 3 small telescopes. With a brighter star or more and larger telescopes the size of Eris will eventually be measured with shocking precision. As an example, the size of Pluto’s moon Charon, which has no atmosphere, is known to an uncertainty of 3 km! We should be able to eventually do as well with Eris.

For Pluto we only need wait 5 years. The New Horizons spacecraft, though whizzing by Pluto at an incredible speed, will get close enough and take accurate enough pictures that – haze or no haze – a highly accurate size will also be measured.

Scientifically, knowing which one is bigger will teach us…. absolutely nothing. The fact that they are nearly identical in size is scientifically interesting; which one is a few kilometers bigger than the other matters not one bit. But, still, I will admit to having a bit of an emotional attachment to Eris, so, deep down inside, I want to believe it will turn out to be a little bigger. But I, like every other scientist on the planet, have absolutely no way to know which one will turn out the biggest.

Bets, anyone?
